Food washing machine

Food washing machine AQUA WASH series

The foodstuffs are washed gently and securely with the power of [water stream] + [foam]

Leaf vegetables, root crops, fruit, meat, sea food, all sorts of foodstuffs are washed gently because of  the “Clear wave water stream”; our company’s original method of washing.

About the newly developed “Clear wave water stream”

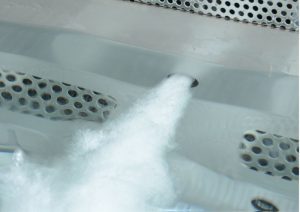

“Clear wave water stream” is realized by a single ejector shooting air + circulating water + tap-water at low pressure at the same time.

A soft water stream and a small amount of foam will enter the fine parts of the foodstuff and scrape and wash off all of the foreign substances.

Washes the foodstuffs gently by rubbing.

The “Clear wave water stream” is shot zig zag from the ejectors on both sides of the washing tank. The [water stream] + [foam] strongly stir and wash the foodstuffs by rubbing.

A soft water stream and small amount of foam will enter the fine parts of the foodstuff and scrape and wash off all of the foreign substances.



■  Achievement of AQUA WASH series

AQUA WASH has been used for cleaning various products in food factories, food service industry, and home-meal replacement industry all over Japan. It is widely used for removing the foreign matter found on leafy vegetables, such as lettuce, and meat, such as chicken and beef, as well as removing the ends of frozen tuna, slime and blood of marine products, and salt from salt-preserved products.

Vegetables

Fruits

Marine products

Meats

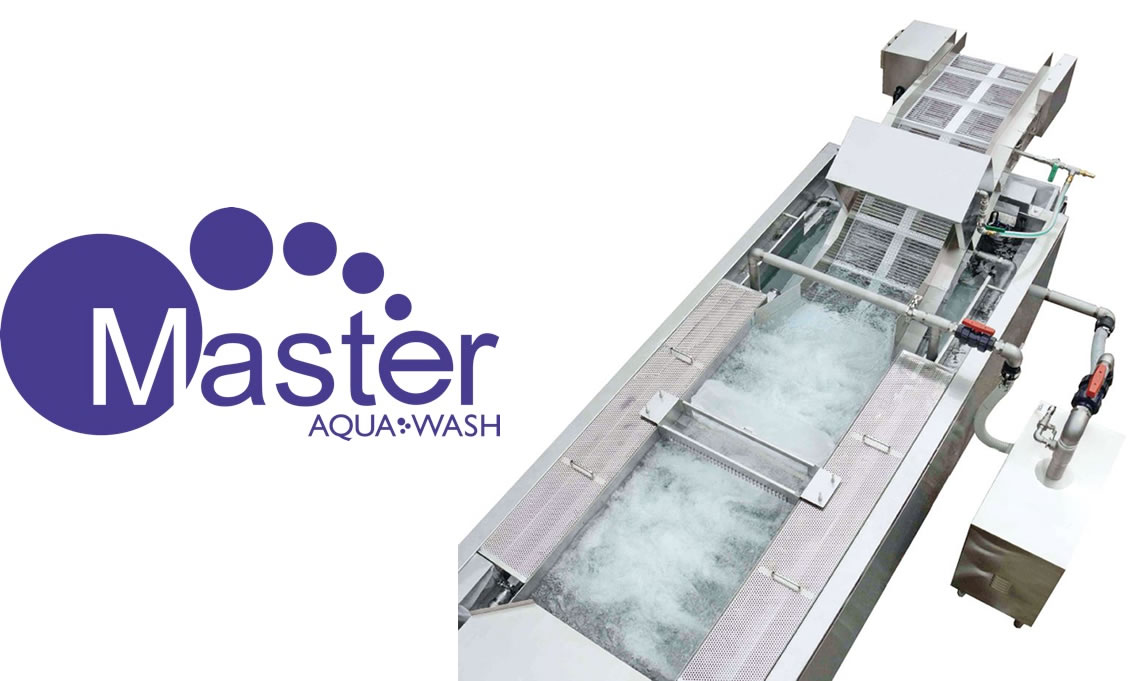

TWS-1300/1300AB -Conveyor equipped for mass processing-

① Has a system that prevents foreign substances or rubbish to get re-attached to the food.

Foreign substances of a relatively light weight will be  1   collected by the float catcher,  collected by the catcher net after being gathered by the washing water circulating in the washing tank,  collected by the tank net of the circulation tank due to an overflow.

 4  The foreign substances of a relatively heavy weight will be deposited, brought together at the taper of the base and removed during draining.

Since foreign substances will be completely removed in 4 steps, there are no worries for the foreign substances to get re-attached to the foodstuffs.

② Substantial Conservation of water

Water saving design that uses circulating water and tap-water together.
Water is supplied into the circulation course. This reduces both environmental and economic burden.



③ Cleansing of both whole/cut products are available.

The conveyor belt can be selected from the two types for a better for the various types of vegetables such as cut types.


Whole products ect.  SUS bar belt

Cut products ect.  Resin belt

④ Removal of foreign substances → disinfection → rinsing can be executed in a row.

This machine can be laid out so as to fit in the space planned for it.By executing all washing processes of the foodstuff in a row, execution is much more efficient and labor saving.
By using the chemical feeder (optional) , disinfection can be done simultaneously as well.

⑤ Easy maintenance


The main unit allows the thorough cleaning of every fine corner with its simple structure requiring no tools for disassembly.

Conveyor belt can be removed by pulling out only one SUS bar.

The cleaning nozzles are equipped as a standard specification for cleaning inside the pipe lines.





Model TWS-1300 TWS-1300AB
Body Dimensions 3500(4216)×1220×1200mm
Estimated Throughput 200-800 kg/h *
Electric Capacity Three-phase 200V/4.9kW Three-phase 200V/2.7kW
Water Storage Capacity 1300L 1040L
Water Supply port 20A (27.2mm)
Drainage port 50A (60.5mm)*3

*Varies depending on the shape of Food.



TWS-125 -Compact design for small quantity and large variety

① Can be freely laid out. Wide variety of purposes and easy to use.

Possible to set up in a limited space and has multipurpose such as for pretreatment and/or for after treatment. Can be used as a sink when not used as a washing machine,
which makes it one device with two different purposes.

② Can be used continuously without worries.

Uses a clean circulation system that leaves no foreign substances or rubbish that was taken off the food. Even when used continuously there is no need to worry about foreign substances getting re-attached to the food.

Clean circulation system
Foreign matter with a high specific gravity is deposited under the drain board, and foreign matter with low specific gravity is collected using a tank net.

③ Definitely water-saving

Water saving design that uses circulating water and tap-water together. Water is supplied into the circulation course. This reduces both environmental and economic burden.



④ Removal of foreign substances → disinfection → rinsing

All washing processes of foodstuff now much more efficient and labor saving due to the coupled specifications of this machine.



Model TWS-125
Body Dimensions 750×900×850mm
Estimated Throughput 1-8 kg / 1 time *
Electric Capacity Three-phase 200V/1.5kW
Water Storage Capacity 125L
Water Supply port 15A (21.7mm)
Drainage port 40A (48.6mm)

*Varies depending on the shape of Food.



TWS-LS500

Active in a Wide range of Uses

Not only Preprocessing, Disinfecting, Unraveling, and Mixing, but also Washing delicate products such as Leaf vegetables is suitable.

5 ways of Washing by Jets

Depending on what you wash products, possible to arrange the Jet nozzles.

Prevents foreign substances from getting re-attached

Foreign substances of a Heavy weight will be deposited under the Drainboard, and of a Light weight will be colletced by Overflow-water and Tank net.

Adjustable Jet Quantity

Each Jet (Right & Left) is easily adjusted by each Valve.

Easy Maintainance

Simple-structured and easy to maintain. Nozzles, Tank-net, and Strainer can be detached and can be washed off.

Model TWS-LS500
Body Dimensions 1960×900×840mm
Estimated Throughput 1-15 kg / 1 time *
Electric Capacity Three-phase 200V/1.5kW
Water Storage Capacity 440L
Water Supply port 15A (21.7mm)
Drainage port 40A (48.6mm)
Resin Drainboard φ25
Overflow-plate φ15

*Varies depending on the shape of Food.
Please Install and Use in a stable place.
